Mediclad®

Mediclad®

PVC-U

Characteristics

Highly hydrophobic surface
Easy-to-Clean/Long service life
Suitable for hygienic areas
Active side with silver ion technology
High scratch resistance

Industries

Healthcare

Building Industry

Application Examples

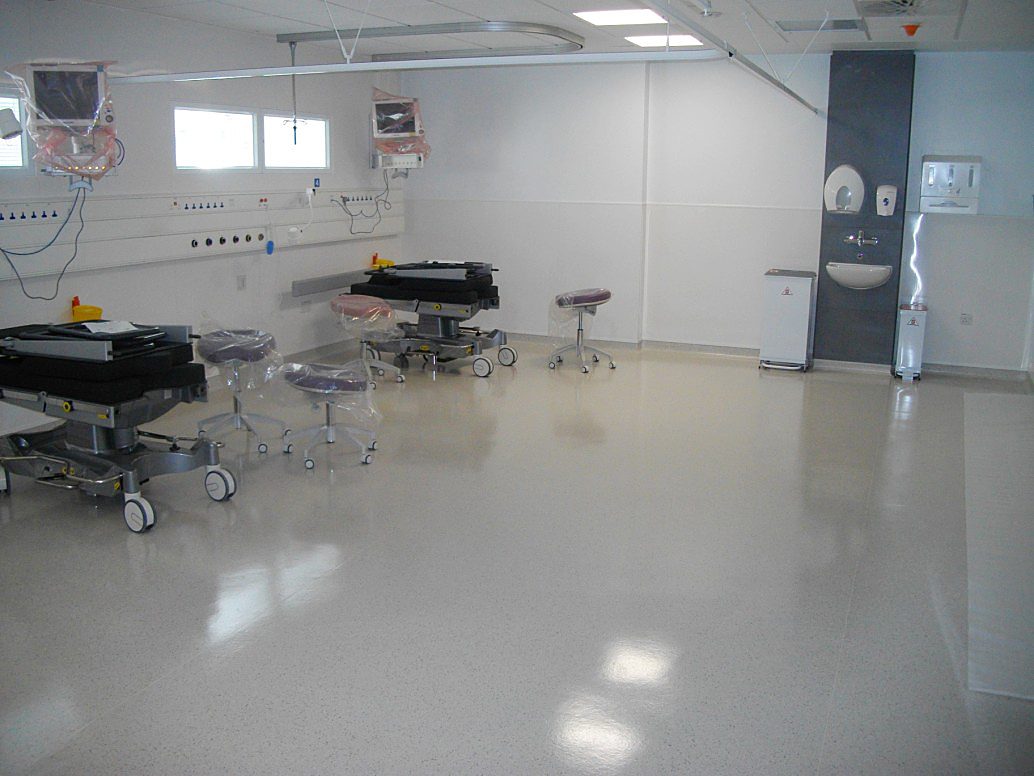

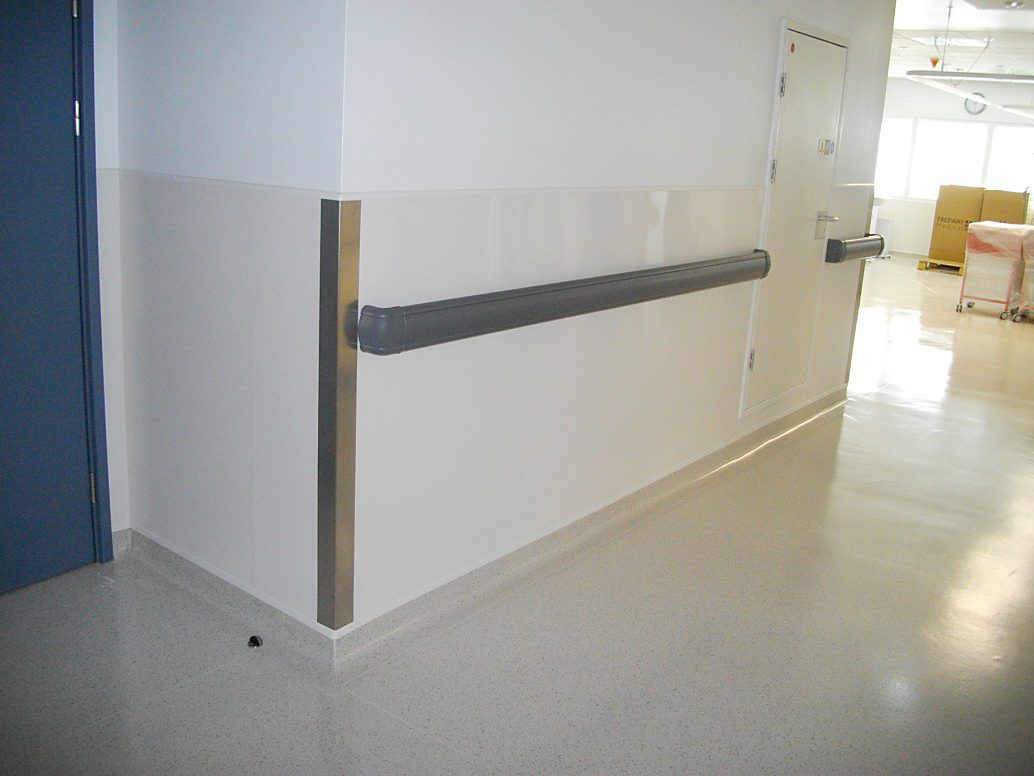

Hygienic wall protection panels with an easy to clean surface. Mediclad® supports high hygiene standards and is suitable for walls, ceilings, doors and surfaces in operating theatres as well as in isolation wards and decontamination areas.

The impervious finish only requires a wash down with hot water and sanitiser for it to be hygienic, clean and at the same time retain appearance

Mediclad® Variants

Name Type Colour Mesurements
Mediclad® White Extruded Sheet White 3.050 x 1.220 x 2,5 mm
Mediclad® White Extruded Sheet White 2.440 x 1.220 x 2,5 mm

Technical Specifications Mediclad® White

General Properties

Test Method Unit Guideline Value
Density DIN EN ISO 1183-1 g/cm3 1,41
Water absorption DIN EN ISO 62 % 0,20
Flammability (2,5 mm) B.S. 476 Part 7 (GB) Class 1
Flammability (2,5 mm) NFP 92-501 (FR) M1
Flammability AS/NZS 150.3 2,5 mm
Flammability (Thickness 2,5 mm) BS 476 Part 6 Class 0
Flammability (Thickness 2,5 mm) DIN 4102 B1

Mechanical Properties

Test Method Unit Guideline Value
Yield stress DIN EN ISO 527 MPa 45
Elongation at break DIN EN ISO 527 % 20
Tensile modulus of elasticity DIN EN ISO 527 MPa 2500
Notched impact strength DIN EN ISO 179 kJ/m2 6
Shore hardness DIN EN ISO 868 scale D 82
Ball indentation hardness DIN EN ISO 2039-1 MPa 110

Thermal Properties

Test Method Unit Guideline Value
Thermal conductivity DIN EN ISO 8302 W/(m*K) 0,16
Vicat softening temperature DIN EN ISO 306, Vicat B °C 74
Service Temperature °C -20 … +60
Coefficient of linear thermal expansion DIN EN ISO 11359-2 mm/mK ∼ 0,075

Electrical Properties

Test Method Unit Guideline Value
Dielectric constant IEC 60250 3,2
Dielectric dissipation factor (106 Hz) IEC 60250 0,02
Volume resistivity DIN EN 62631-3-1 Ω * cm >1015
Surface resistivity DIN EN 62631-3-2 >1013

Standard Trims

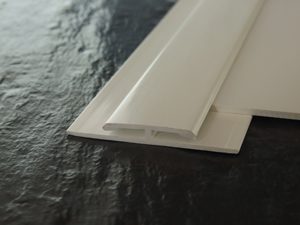

Panel Joint (H) 2.5m/3.0m

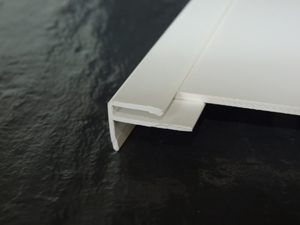

End Stop (J) 2.5m/3.0m

External Corner (F) 2.5m/3.0m

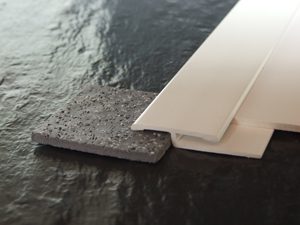

Modified Panel Joint 2.5m only

Standard Trim Dimensions

Panel Joint (H)

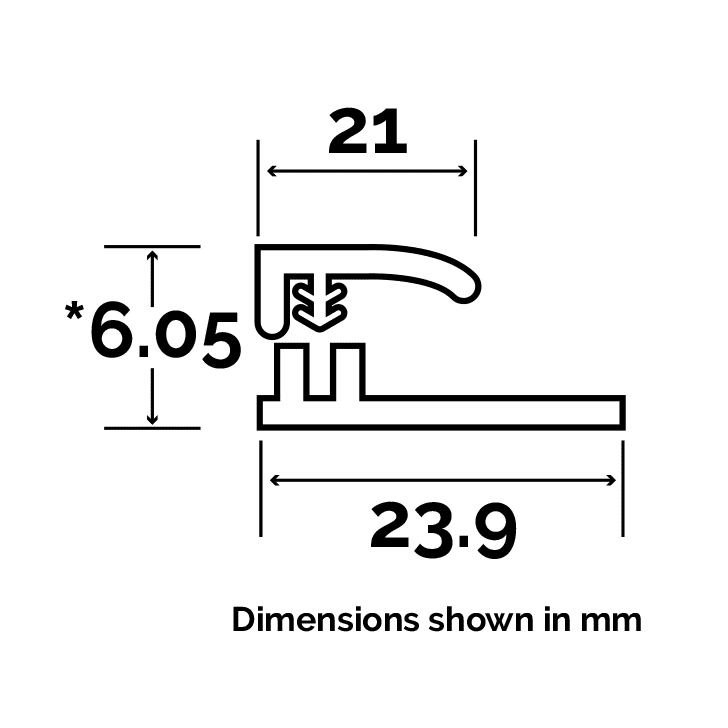

End Stop (J)

External Corner (F)
